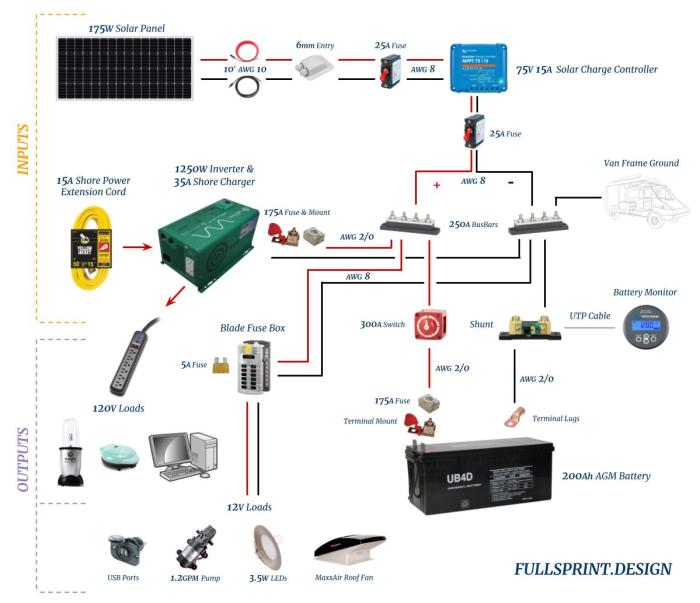

Van Solar Electrical Wiring Diagram
To get access to a high resolution, interactive PDF of our solar power electrical wiring diagram, visit our shop! This includes hyperlinked electronic parts and values.
All 12V DC loads are pulled directly from the battery. This includes the water pump & faucet switch, USB charging port, MaxxAir Roof Fan, and 3.5W LED lighting.
You might think that extension cord is powering the van. However; this is during the California wildfire prevention power outages. The van is powering the house!
